Advanced Indexing Solutions for Horizontal Machining #

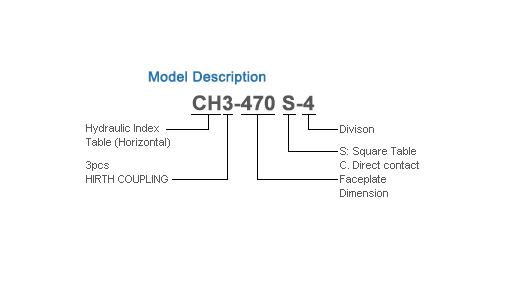

The CH3-340 Hydraulic Index Table is engineered to deliver high precision and reliability for horizontal machining applications. This model incorporates several advanced features to ensure accuracy, efficiency, and adaptability in demanding industrial environments.
Key Features #
- High Precision HIRTH Coupling: Utilizes a 3-piece HIRTH coupling system to guarantee exceptional positioning accuracy and prevent unnecessary lifting of the faceplate.
- Efficient Power Transmission: The rack driving mechanism ensures high mechanical efficiency during power transmission.
- Cost-Effective Hydraulic Drive: Hydraulic actuation reduces operational costs while maintaining performance.
- Robust Hydraulic Clamping: The hydraulic clamping system provides stable and secure holding, enabling heavy and steady cutting without deviation from the center, ensuring precise positioning.
- Flexible Integration: Compatible with PLC controllers or the HIC-2010, allowing use as an additional axis. It can also be integrated with rotary special machines, boring, and milling machines for expanded functionality.
Technical Specifications #
| Parameter | Value |
|---|---|
| Use Method | Horizontal use only |
| Clamp Method | Hydraulic 35Kg/cm² |
| Faceplate Diameter | Ø340mm |
| Thru-Hole Diameter | Ø30mm |
| Centre Hole Diameter | Ø65 x 19mm Deep |
| T-Slot Width | None |
| Division | Standard: 4D, 6D, 8D, 12D, 24D Special: 2D, 3D, 5D, 9D, 10D, 16D, 20D, etc. |
| Indexing Accuracy | ±5 arc seconds |
| Repeatability | ±1 arc second |
| Maximum Load | 600kg |
| Net Weight | 130kg |
Faceplate Drilling Dimensions #
| Model | A (mm) | B (mm) |
|---|---|---|
| CH3-340 | Ø270 | 27 |
Applications #
- Suitable for integration with rotary special machines
- Compatible with boring and milling machines
- Can be used as an additional axis with PLC or HIC-2010 controllers
For more information, explore the full product catalog or contact our team for tailored solutions.
