Precision Indexing Tables for Industrial Applications #
TOPSDISK offers a diverse range of indexing tables designed for fixed angle or division operations, suitable for a variety of industrial and machining applications. The selection includes both pneumatic and hydraulic clamping options, with models tailored for horizontal and vertical use, as well as manual operation.
Product Categories #
- Transmission: Rack Gear
- Operation: Manual rotating
- Plate Type: Round, Square
- Use Method: Horizontal (plate upwards), Vertical (plate towards right or left)
- Division Options:
- Standard: 4, 6, 8, 12, 24
- Special: 2, 3, 5, 9, 10
- 5 or 15 Degree
- Clamp Method: Pneumatic, Hydraulic
Featured Indexing Tables #
CH3-340 Hydraulic Index Table

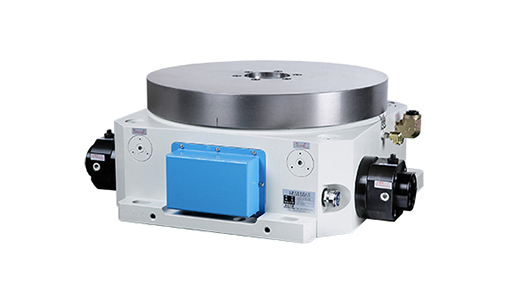

CH3-470 Hydraulic Index Table

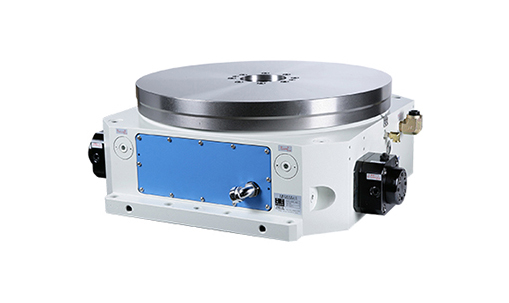

CH3-600 Indexing Table

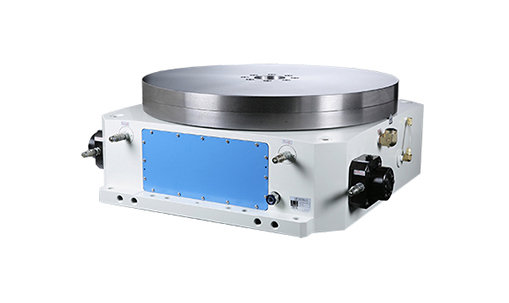

CH3-800 Indexing Table

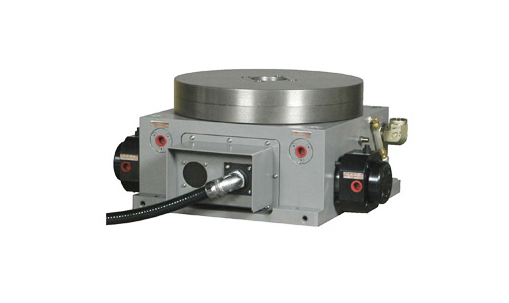

CH3-340C Indexing Table

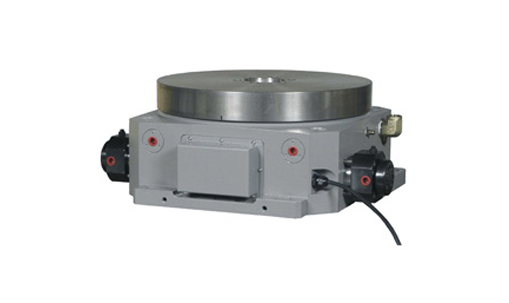

CH3-470C Indexing Table

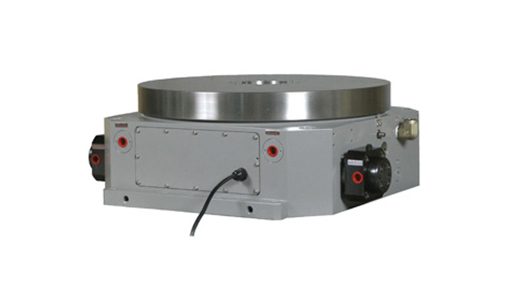

CH3-600C Indexing Table

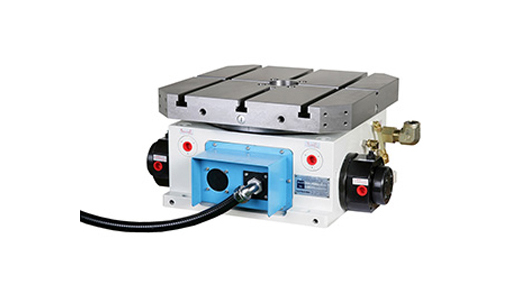

CH3-400S Indexing Table

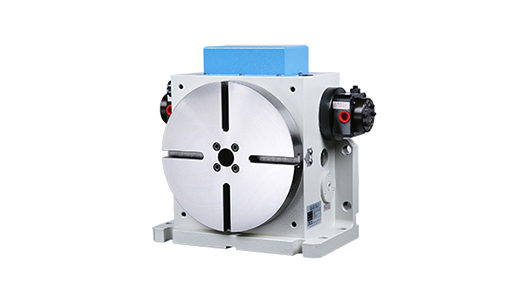

CV3-255HD Indexing Table

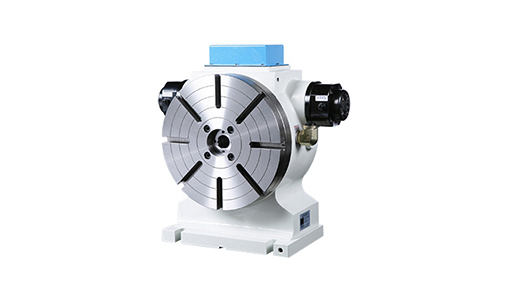

CV3-320HD Vertical Index Table

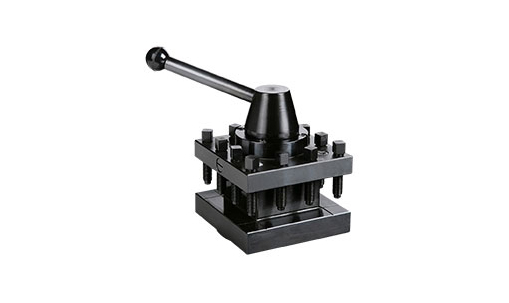

TP-160 Position Turret Tool Post for Lathe

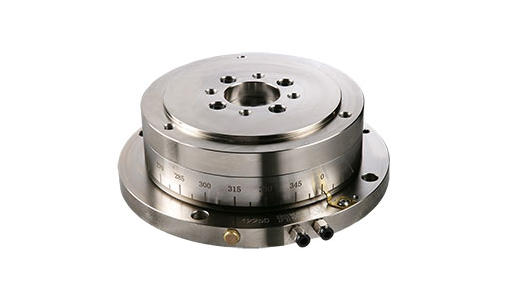

CH2-201 Manual Rotary Indexing Table for Milling Machine
Key Features by Model #
- CH3-340 / CH3-470 / CH3-600 / CH3-800: Hydraulic clamping, horizontal use only, through hole diameters ranging from 30mm to 50mm.
- CH3-340C / CH3-470C / CH3-600C: Practical type, hydraulic clamping, horizontal use only, through hole diameters from 30mm to 50mm.
- CH3-400S: Hydraulic clamping, horizontal special-purpose, square faceplate, through hole 30mm.
- CV3-255HD / CV3-320HD: Hydraulic clamping, vertical special-purpose, no through hole.
- TP-160: Manual operation, position turret tool post for lathe.
- CH2-201: Manual rotary indexing table for milling machines (minimum order 10 sets).
Additional Resources #
- NC Rotary Table (0.001 deg.)
- Rotary Table for Tool Grinding Machine
- Tailstock
- Accessory
- Applications
- E-Catalog
For further details or to make an inquiry, please visit the respective product pages linked above.
