Advanced Rotary Table Solutions for Modern Machining #

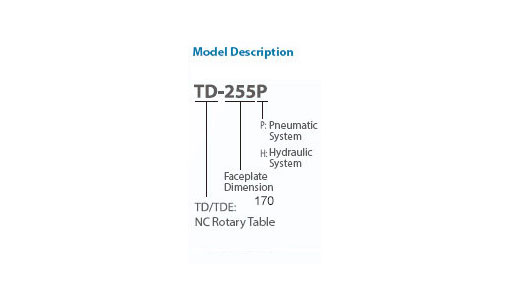

The TD-170P Servo Rotary Table is engineered to deliver high precision and reliability for a wide range of machining applications. This model is part of the Standard Series and is designed to meet the demands of both vertical and horizontal operations, making it a versatile addition to any CNC setup.
Key Features #
- High-Tech Cross Roller Bearing: Ensures stability and precision during operation.
- Patented Pneumatic Disk-Clamping System: Utilizes a Taiwan-patented (PAT. : 217736) design to maximize clamping force, supporting heavy-duty and continuous cutting tasks.
- Wear-Resistant Alloy Dual-Lead Worm Gear: Offers high mechanical efficiency, superior power transmission, excellent indexing accuracy, and easy backlash adjustment.
- Servo Motor Driven: Provides efficient positioning, high accuracy, and low noise, suitable for workpieces at any angle.
- Flexible Integration: Can be connected as a 4th axis to CNC machines or paired with a single axis controller for additional axis functionality.
Technical Specifications #
| Parameter | Value |
|---|---|
| Use Method | Vertical / Horizontal |
| Clamp Method | Pneumatic 5kg/cm² |
| Faceplate Dimension | Ø170mm |
| Spindle Through Hole Diameter | Ø45mm |
| Faceplate Centre Hole Diameter | Ø50H7mm |
| Centre Height | 135mm |
| Faceplate T-Slot Width | 12H7mm |
| Position Key | 14h7mm |
| Servo Motor Options | FANUC: α4i / β8i; MELDAS: HF54T |
| Total Speed Reduction Ratio | 1/72, 1/90 |
| Min. Increment Unit | 0.001° |
| Indexing Accuracy | 30 (Arc. Sec.) |
| Repeatability | 4 (Arc. Sec.) |
| Clamp Force | 16kgf-m |
| Max. Torque Capacity (Worm Gear) | 27kgf-m |
| Max. Workpiece Capacity (Vertical with Tailstock) | 75(150)kg |
| Max. Workpiece Capacity (Horizontal) | 150kg |
| Net Weight (Without Motor) | 40kg |
For a detailed overview, you can download the full specification sheet (PDF).
Application and Integration #
The TD-170P is suitable for a variety of machining environments, offering both vertical and horizontal mounting options. Its robust clamping and high-precision indexing make it ideal for tasks requiring repeatable accuracy and reliable performance. The table can be seamlessly integrated into CNC systems as a 4th axis or used with a dedicated single axis controller for specialized applications.
Additional Resources #
- Product Catalog
- Servo Motor Reference Table
- Formula of Angle Error
- 4th Axis Base Plate Module Description
For further inquiries or to request a quote, please visit the inquiry page.
